Deployment Guide

Argy deployment options: SaaS, Hybrid with Self-Hosted Agent, and Enterprise with On-Premises LLM Gateway.

Argy offers multiple deployment modes to adapt to your security, compliance, and data sovereignty requirements.

SaaS Architecture (High Level)

Argy runs a managed control plane in Europe with dedicated entry points for the Portal, API, and LLM Gateway. Governance is centralized (quotas, audit, policies) while customer workloads remain isolated and scalable.

High Availability & Continuity

Multi‑region active/standby: France Central (primary) + North Europe (standby).
Multi‑zone distribution with automatic autoscaling.
Automated public endpoint failover.
Target RPO: 2h (replication + geo backups).
Target RTO: 30 min (automated failover).

Deployment Options

1. SaaS (Managed Cloud)

The default mode, ideal for a quick start.

Features:

Managed infrastructure on Azure in Europe
Native GDPR compliance
99.9% availability SLA
Automatic and transparent updates
Support included based on your plan

Prerequisites:

No infrastructure to provision
Internet access for your users

Access URLs:

Console: https://portal.argy.cloud
API: https://api.argy.cloud
LLM Gateway: https://llm.argy.cloud

2. Hybrid (Self-Hosted Agent)

SaaS Control Plane + Agents deployed in your infrastructure to execute sensitive actions.

Features:

Lightweight docker agents deployed in your network
Outbound-only connection (no port exposure)
Direct access to your internal resources (Git, Kubernetes, Cloud)
Real-time log streaming to Argy

Ideal for:

Enterprises with internal resources not exposed to the Internet
Environments with network security constraints
Access to private Kubernetes clusters

Available on: Growth and Enterprise plans.

Agent Installation

Prerequisites:

Docker or Kubernetes
Outbound access to api.argy.cloud:443
Agent token generated from the Argy console

Step 1: Generate an agent token

Log in to the Argy console
Go to Settings → Agents
Click Create an agent
Name your agent (e.g., agent-prod-datacenter-paris)
Copy the generated token (it won't be displayed again)

Step 2: Deploy the agent with Docker

docker run -d \
  --name argy-agent \
  --restart unless-stopped \
  -e ARGY_AGENT_TOKEN="your-token-here" \
  -e ARGY_API_URL="https://api.argy.cloud" \
  -v /var/run/docker.sock:/var/run/docker.sock \
  -v ~/.kube:/root/.kube:ro \
  ghcr.io/argy/agent:latest

Step 3: Deploy the agent on Kubernetes

apiVersion: apps/v1
kind: Deployment
metadata:
  name: argy-agent
  namespace: argy-system
spec:
  replicas: 1
  selector:
    matchLabels:
      app: argy-agent
  template:
    metadata:
      labels:
        app: argy-agent
    spec:
      serviceAccountName: argy-agent
      containers:
      - name: agent
        image: ghcr.io/argy/agent:latest
        env:
        - name: ARGY_AGENT_TOKEN
          valueFrom:
            secretKeyRef:
              name: argy-agent-secret
              key: token
        - name: ARGY_API_URL
          value: "https://api.argy.cloud"
        resources:
          requests:
            memory: "128Mi"
            cpu: "100m"
          limits:
            memory: "512Mi"
            cpu: "500m"
---
apiVersion: v1
kind: Secret
metadata:
  name: argy-agent-secret
  namespace: argy-system
type: Opaque
stringData:
  token: "your-token-here"
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: argy-agent
  namespace: argy-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: argy-agent
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin  # Adjust according to your needs
subjects:
- kind: ServiceAccount
  name: argy-agent
  namespace: argy-system

Step 4: Verify the connection

In the Argy console, the agent should appear as "Connected" in Settings → Agents.

3. Enterprise (On-Premises LLM Gateway)

Deploy the LLM Gateway in your infrastructure to keep your AI data internal.

Features:

LLM Gateway deployed on your premises
Your LLM API keys stay within your perimeter
Complete audit of AI requests locally
Quota synchronization with Argy SaaS
Full on‑prem option (Enterprise)

Ideal for:

Large enterprises with strict sovereignty requirements
Regulated sectors (finance, healthcare, defense)
Organizations with sensitive data policies

On-Premises LLM Gateway Installation

Prerequisites:

Kubernetes cluster (1.25+)
PostgreSQL 15+ (for traces)
Redis 7+ (for cache, recommended)
Outbound access to LLM providers
Outbound access to api.argy.cloud:443 (quota synchronization)

Step 1: Prepare the database

-- Create the database
CREATE DATABASE argy_llm_gateway;

-- Create the user
CREATE USER argy_llm WITH PASSWORD 'your-secure-password';
GRANT ALL PRIVILEGES ON DATABASE argy_llm_gateway TO argy_llm;

Step 2: Configure Kubernetes secrets

apiVersion: v1
kind: Secret
metadata:
  name: argy-llm-gateway-secrets
  namespace: argy-system
type: Opaque
stringData:
  # Connection to Argy SaaS for quota sync
  ARGY_API_URL: "https://api.argy.cloud"
  ARGY_TENANT_TOKEN: "your-tenant-token"

  # Database
  DATABASE_URL: "postgresql://argy_llm:password@postgres:5432/argy_llm_gateway"

  # Redis (optional but recommended)
  REDIS_URL: "redis://redis:6379"

  # LLM provider API keys
  OPENAI_API_KEY: "sk-..."
  ANTHROPIC_API_KEY: "sk-ant-..."
  GOOGLE_API_KEY: "..."
  AZURE_OPENAI_API_KEY: "..."
  AZURE_OPENAI_ENDPOINT: "https://your-resource.openai.azure.com"

Step 3: Deploy the LLM Gateway

apiVersion: apps/v1
kind: Deployment
metadata:
  name: argy-llm-gateway
  namespace: argy-system
spec:
  replicas: 2
  selector:
    matchLabels:
      app: argy-llm-gateway
  template:
    metadata:
      labels:
        app: argy-llm-gateway
    spec:
      containers:
      - name: llm-gateway
        image: ghcr.io/argy/llm-gateway:latest
        ports:
        - containerPort: 3009
        envFrom:
        - secretRef:
            name: argy-llm-gateway-secrets
        resources:
          requests:
            memory: "256Mi"
            cpu: "200m"
          limits:
            memory: "1Gi"
            cpu: "1000m"
        livenessProbe:
          httpGet:
            path: /health
            port: 3009
          initialDelaySeconds: 10
          periodSeconds: 10
        readinessProbe:
          httpGet:
            path: /ready
            port: 3009
          initialDelaySeconds: 5
          periodSeconds: 5
---
apiVersion: v1
kind: Service
metadata:
  name: argy-llm-gateway
  namespace: argy-system
spec:
  selector:
    app: argy-llm-gateway
  ports:
  - port: 443
    targetPort: 3009
  type: ClusterIP

Step 4: Configure Ingress (optional)

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: argy-llm-gateway
  namespace: argy-system
  annotations:
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
spec:
  tls:
  - hosts:
    - llm.your-domain.internal
    secretName: llm-gateway-tls
  rules:
  - host: llm.your-domain.internal
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: argy-llm-gateway
            port:
              number: 443

Step 5: Configure the tenant in Argy

Contact Argy support to enable on-premises mode
Provide your LLM Gateway URL (e.g., https://llm.your-domain.internal)
Argy will configure the llm_gateway_url claim in your users' JWTs

Network Flows to Open

Hybrid Mode (Self-Hosted Agent)

Source	Destination	Port	Protocol	Direction	Description
Argy Agent	api.argy.cloud	443	HTTPS/gRPC	Outbound	Agent → Control Plane communication
Argy Agent	Your internal resources	Variable	Variable	Internal	Action execution (Terraform, K8s, Git)

Enterprise Mode (On-Premises LLM Gateway)

Source	Destination	Port	Protocol	Direction	Description
Argy Agent	api.argy.cloud	443	HTTPS/gRPC	Outbound	Agent → Control Plane communication
LLM Gateway	api.openai.com	443	HTTPS	Outbound	OpenAI calls
LLM Gateway	api.anthropic.com	443	HTTPS	Outbound	Anthropic calls
LLM Gateway	generativelanguage.googleapis.com	443	HTTPS	Outbound	Google Gemini calls
LLM Gateway	api.x.ai	443	HTTPS	Outbound	xAI Grok calls
LLM Gateway	api.x.ai	443	HTTPS	Outbound	Mistral AI calls
LLM Gateway	*.openai.azure.com	443	HTTPS	Outbound	Azure OpenAI calls
LLM Gateway	api.argy.cloud	443	HTTPS	Outbound	Quota and audit synchronization
Argy Code / IDE	Internal LLM Gateway	443	HTTPS	Internal	AI requests from dev workstations

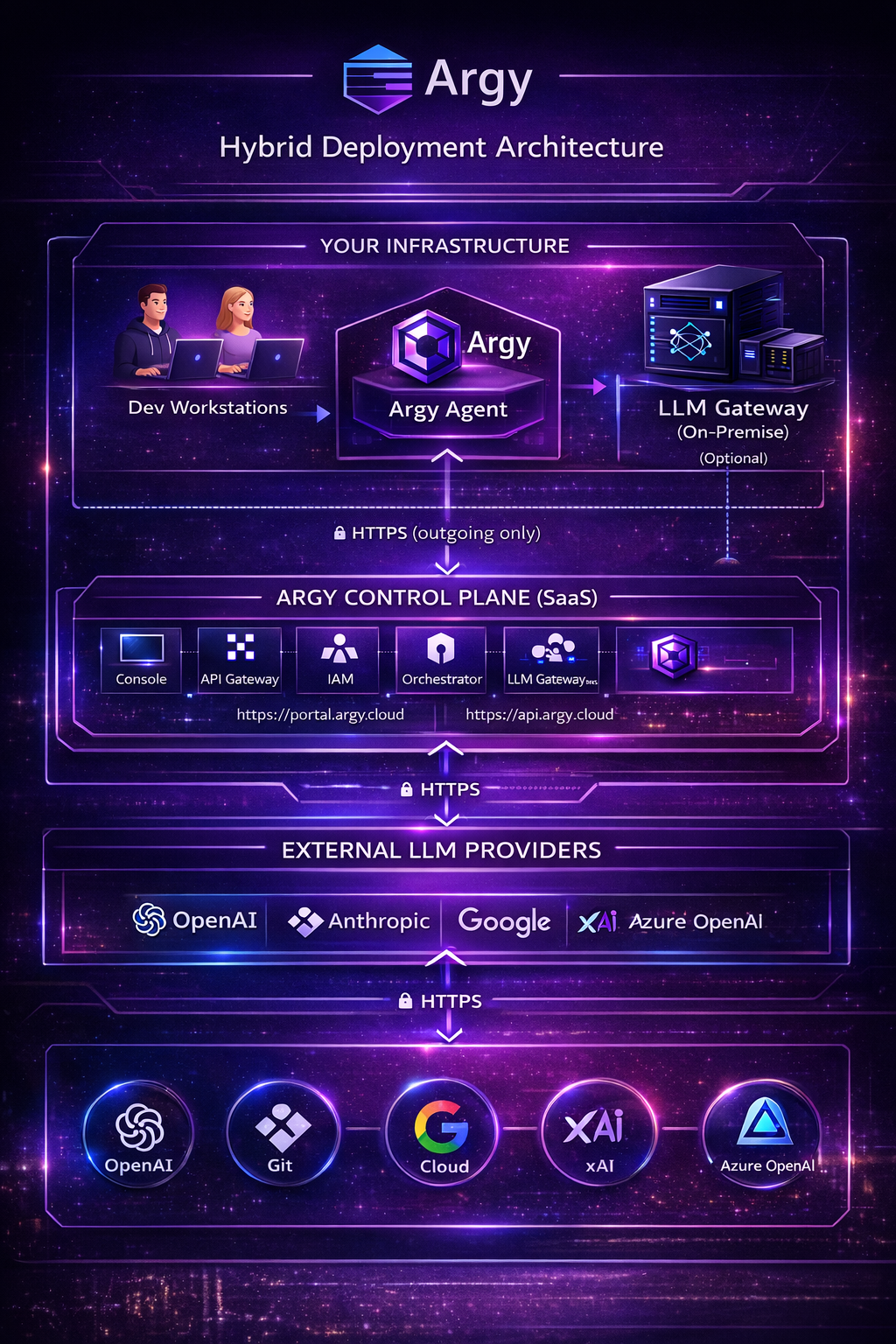

Architecture Diagram

Argy deployment options diagram (SaaS, Hybrid, Enterprise)

Deployment Checklist

SaaS Mode

Create an account on portal.argy.cloud
Configure SSO (optional)
Invite team members
Create your first product

Hybrid Mode

Generate an agent token in the console
Deploy the agent (Docker or Kubernetes)
Verify the connection in the console
Configure access to internal resources
Test a first deployment

Enterprise Mode

Contact Argy support for activation
Provision PostgreSQL and Redis
Deploy the LLM Gateway
Configure LLM provider API keys
Configure the LLM Gateway URL in Argy
Test AI calls from Argy Code
